FIM Umbrella Parts Web

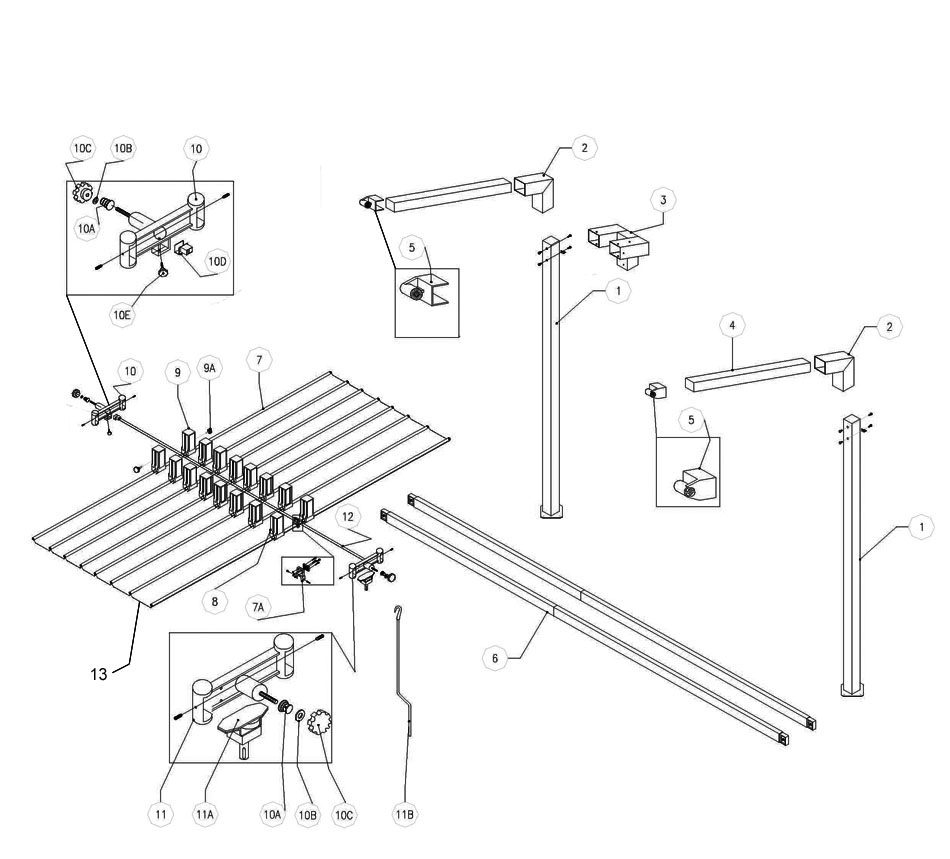

Click on the part description to view details.
Replacement panel fabric 8ft F13-8
Replacement panel fabric 10ft F13-10
Canopy tilt casting, return side, for draw string operation FD10-SWH
Canopy tilt casting, pull side, for string operation FD11-SWH
Canopy tilt casting, return side, for 7/16" narrow belt FC10N-SWH
Canopy tilt casting, crank side, for 7/16" narrow OR 5/8" wide belt FC11NW-SWH
Canopy tilt casting, return side, for 5/8" wide belt FC11WR-SWH
Cantilever pole tilt casting F5
Braided 1/8" pull cord with end loops FDPC
Narrow cogged kevlar filament drive belt, 7/16" wide FNB
Wide cogged stainless filament drive belt, 5/8" wide FWB
Canopy tilt hand wheel with washer F10CB
Conical Compression Spring F10A
M12 lock nut / washer set to replace F10CB hand wheel FM12LNS
Belt Clamp - narrow belt F7A-NB
Belt Clamp - wide belt F7A-WB
Rib End Cap F7-EC
Return Pulley - narrow belt F10D-NB
Return Pulley - wide belt F10D-WB
Belt Drive Gear Assembly - narrow belt F11A-NB
Belt Drive Gear Assembly - wide belt F11A-WB
Loop on belt drive gear to insert crank handle F11A-CL
Crank Handle F11B
Canopy slider F9
Elbow for top of vertical pole F2
Dual carrier elbow for modular installations F3
Cantilever pole with tilt casting F4
Vertical pole 79 1/2" F1
